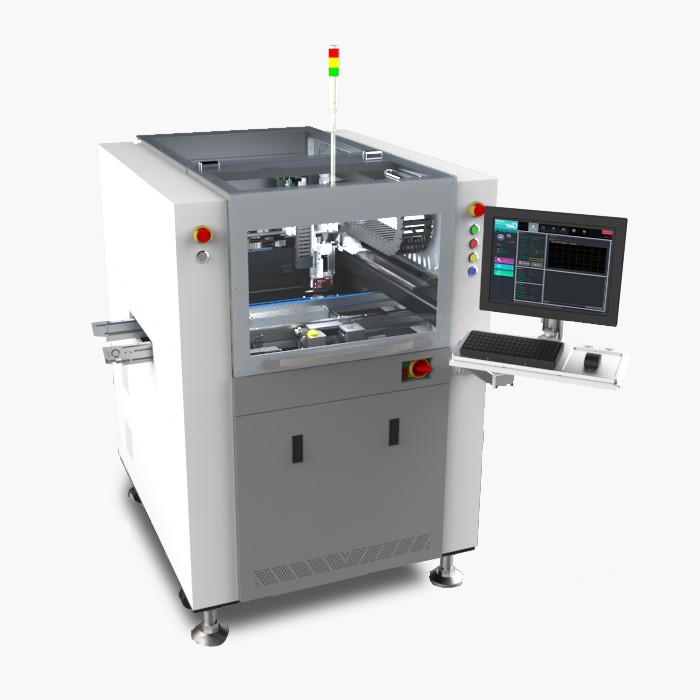

DNC-6200LD Fully Automatic Dispenser
Loader /Unloader가 장착된 모델로 일반적인 디스펜싱 관련된 모든 공정에 적용가능한 장비입니다.
공정에 따라 밸브를 선택할 수 있고 다음과 같은 공정에 사용 가능합니다.
Under fill / Dam & Fill / Sealing / Side Dispensing / Encapsulation / Solder Paste / LED Phosphor Dispensing
- Dispensing Module
- 1) Valve System : JET / Linear / Auger / Spray (depend on production)
2) Air Pressure : 0 ~ 500kPa
3) Dispensing Area : 250 X 250 mm
4) Dispensing Accuracy : ±0.05 mm (option : WMS : Wight Measurement System)
5) Dispensing Speed : 0 ~ 200 mm/sec (depend on product) - Throughput (U.P.H.)
- 2000 (Referance : FlipChip 35X35, depend on dispensing condition)
- Conveyor (Single)
- 1) Feeding Type (Speed) : Belt Conveyor System (0 ~ 1000mm/sec)
2) Width : 70 ~ 280mm
3) Width Adjustment : Manual Handling
4) Feeding Height : 900 ±30 mm - Loader / Unloader
- 3 Magazine
Magazine Size : 50X150X144 ~ 140X220X160 mm (W X L X H) - XYZ Motion
- 1) Repeatability : ±0.01 mm
2) Encoder Resolution : 0.001 mm
3) Speed(Acceleration) : 1000 mm/sec (up to 1.0G)
4) Travel Area : 350 X 400 X 80 mm
5) Driving Type : Gantry Type Linear Servo - Vision
- 1) Align Algorithm : Geometric Model Finder / Pattern Matching
2) Bad Product Detector : Bad Unit Finder
3) Illuminator : White LED Light
4) Camera : CCD 12.0 mm X 10.0 mm (2M Pixel Camera)
5) Inspection Speed : 50 ~ 300msec - Height Sensor
- Laser Sensor, Accuracy : 0.001 mm ±0.2%
- System & Facility
- 1) OS : Windows 10 Professional
2) S/W : DisCraft
3) Supply :
- Air : 5Kgf/cm²
- Electical : 200V ~ 240VAC, 50~60Hz Single Phase 15A

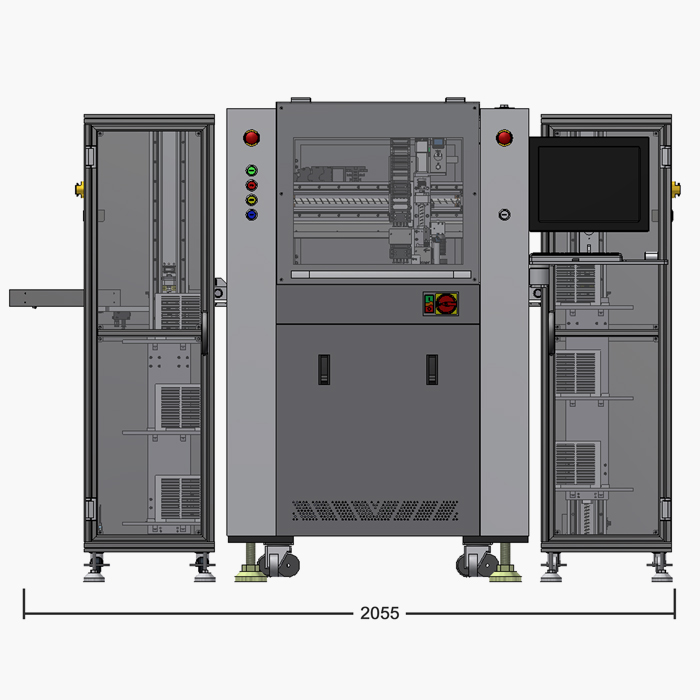

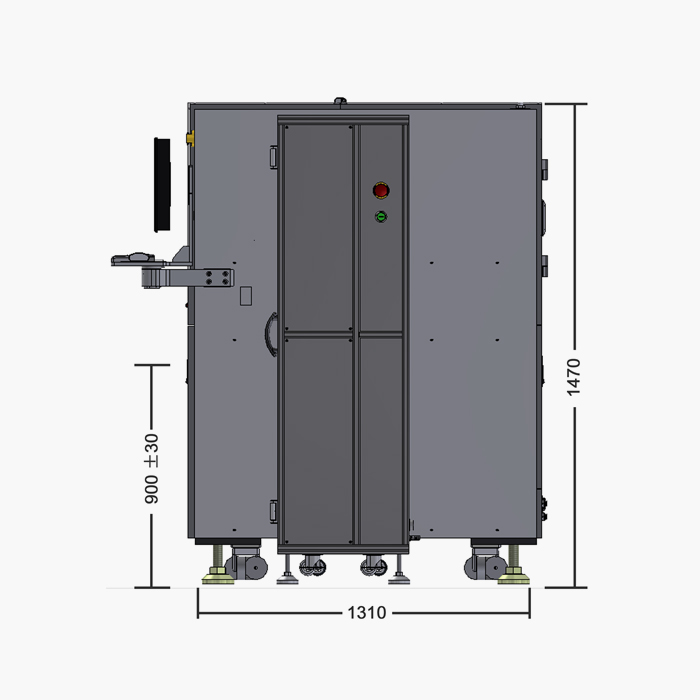

4) Dimension (Weight) : 2055(W) X 1310(L) X 1470(H) (0.7ton)
