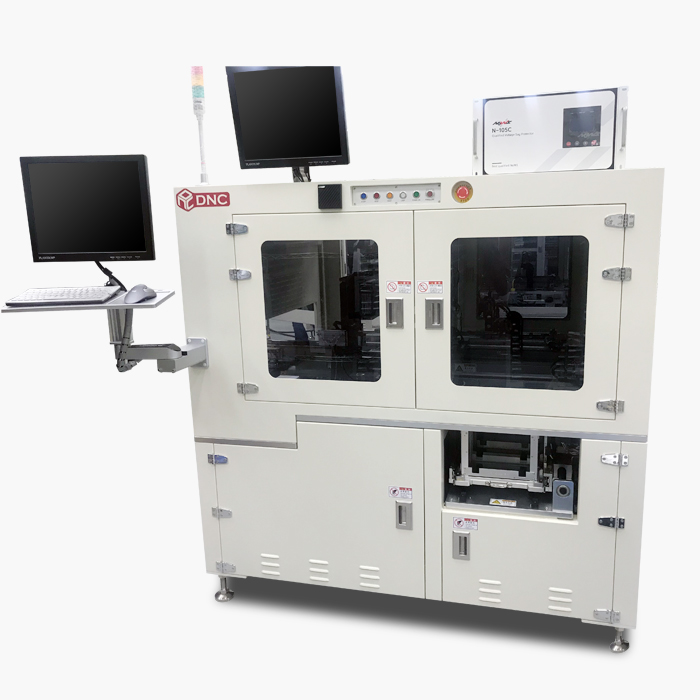

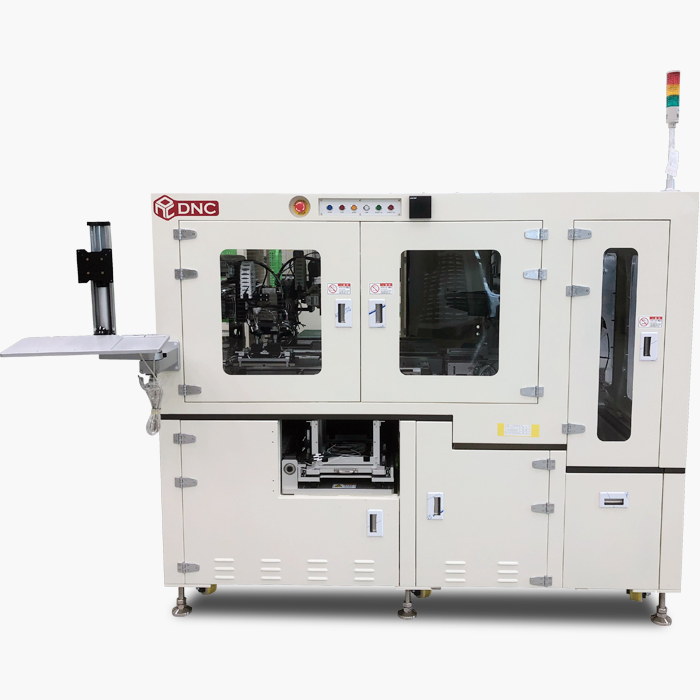

Smart Factory In-Line Material Handling System
DNC-2000JU
DNC-2000JU FCB Jig Loader
Reflow 장비로 부터 이송되어 배출 된 Top Cover / PCB / Bottom Jig를 자동으로 분리하는 장비입니다.
- FCB Size
- 50mm ~ 200mm (Width)
- Top Cover Stacked Q'ty
- 100
- Bottom Jig Stacked Q'ty
- 100
- Conveyor Conversion
- Automatic
- 2D Barcode
- All Barcode Type (Option)
- Rail Height(Pass Line)
- 950mm
- Ionizer
- Support
- Interface
- SMEMA
- Langauge
- Korea / English
- SECS/GEM
- Option
- O/S
- Windows 10 Pro.
- Dimension. Weight
- 1,600 mm (L) X 1,625 mm (W) X 1,650 mm (H) Overal / 1,100Kg
- Power Comsumtion
- AC220, 1Phase, 30A
- Compressed Air
- 0.6Mpa
- UPS / VPS
- Support
