Cell Side Dispensing

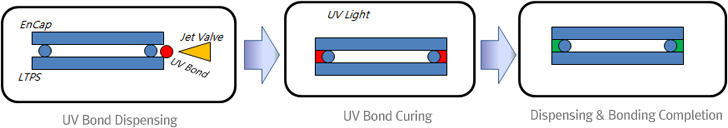

Cell Side Dispensing Process
- Cell Size & Thickness
- Cell Size : Min. 60 X 100 ~ Max. 140 X 240, Thickness : 0.6 ~ 1.0 mm
- Cell In-put Method
- Tray (Cell Pad Direction is Operation Side)
- Cell Out-put Method
- Moving to Next Process Stage or Conveyor by Robot
- Cell Align Method
- Vision Align or Mechanical Align
- Dispensing Method
- Jetting Valve Dispensing
- Cure Method
- UV Lamp Cure (LED Type)
- Dispensing Guide Method
- Vision Guided (Using CCD Camera)
- Vacuum Stage
- Auto Model Change (individual Ejector & Vacuum Sensing)
- TACT Time
- About 8.0 sec/cell (depending on cell size)
- Control
- PC Control
