Smart Factory In-Line Material Handling System
DNC-2200NUD
![](board_data/products/DNC_2200UD_001.jpg)

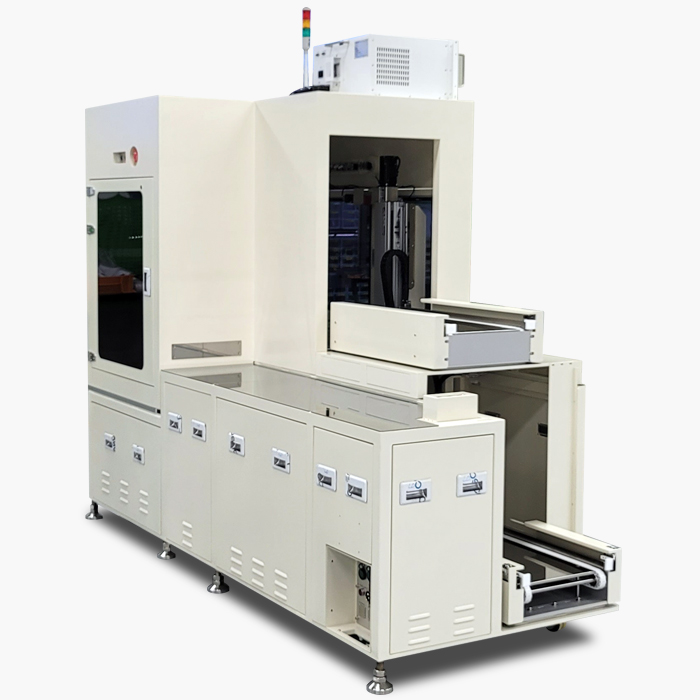

DNC-2200NUD SMT Module Unloader
SMT Moudle 라인에서 Process가 완료된 PCB를 Magazine에 자동으로 적재하는 장비입니다.
PCB 양면 작업을 위한 Rotation & Return 기능이 포함되어 있습니다.
- PCB Size
- 100mm ~ 250mm (Width), 100 ~ 330 (Length), 0.1 ~ 5mm (Thickness)
- Magazine Size
- Standard SMT PCB Magazine
- Inverter & Rotate Unit
- Support
- Conveyor Conversion
- Automatic
- 2D Barcode
- All Barcode Type (Option)
- Rail Height(Pass Line)
- 930mm
- Ionizer
- Support
- Interface
- - SMEMA
- IPC-Hermes - Langauge
- Korea / English
- SECS/GEM
- Option
- O/S
- Windows 10 Pro.
- Dimension / Weight
- 3,100(L) X 1,130(W) X 1,822(H) / 1,300Kg
- Power Comsumtion
- AC220, 1Phase, 15A
- Compressed Air
- 0.6Mpa
- UPS / VPS
- Support
